chongqing huifan technology co., ltd has gained a remarkable position in the concerned industry through years of efforts, and there is a great possibility that the company will achieve a greater advancement in the future. After HF SECURITY Mini Anti Theft Fingerprint Lock Door Locks Drawer Safe Box Cabinet Locker launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Our expertise and technologies enable tailor-made solutions for every customer.

Place of Origin:ChinaBrand Name:HF Security
Model Number:HF020105Brand name:HF Security
Model number:020105Type:Drawer/Safe box/door lock


Product Description
[HFSECURITY Electric Lock] Mini Anti Thieft Fingerprint Lock Door Locks Drawer Safe Box Cabinet Locker

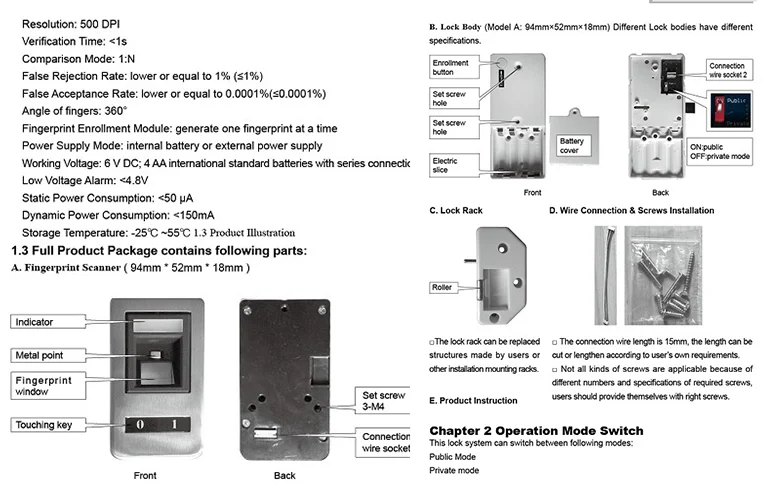

Specifications:
Fingerprint Storage Capacity
100
Sensor
0.3 Mega Pixels CMOS(coloful)
Resolution
500DPI
Angle of Fingers
360 degree
Working Voltage
DC 6V
Lowe Voltage Alarm
<4.8V
Dynamic Power Consumption
<150mA
Size
94*52*18mm

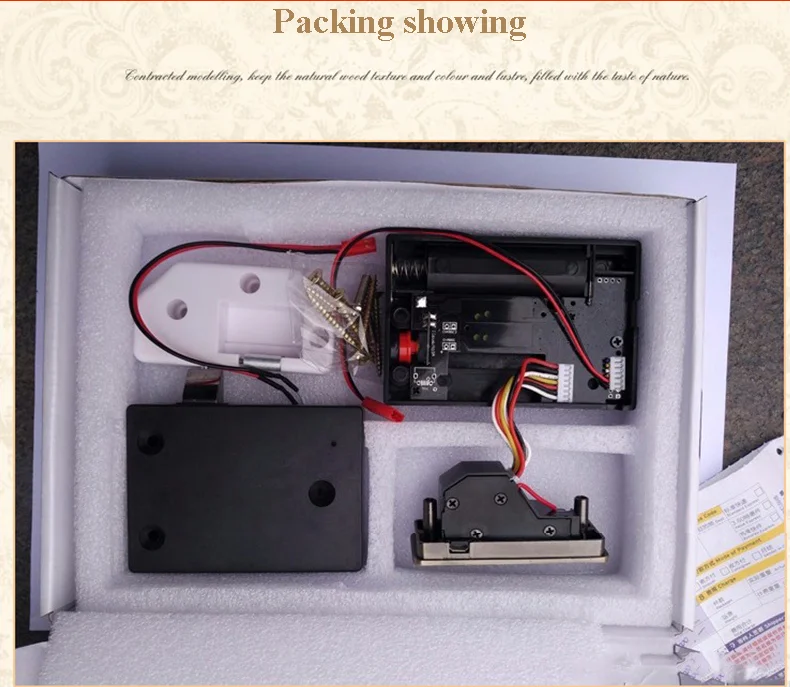

Single package included:

1*Fingerprint lock
1*Battery box
1*Lock panel
1*Screws


How to use it?

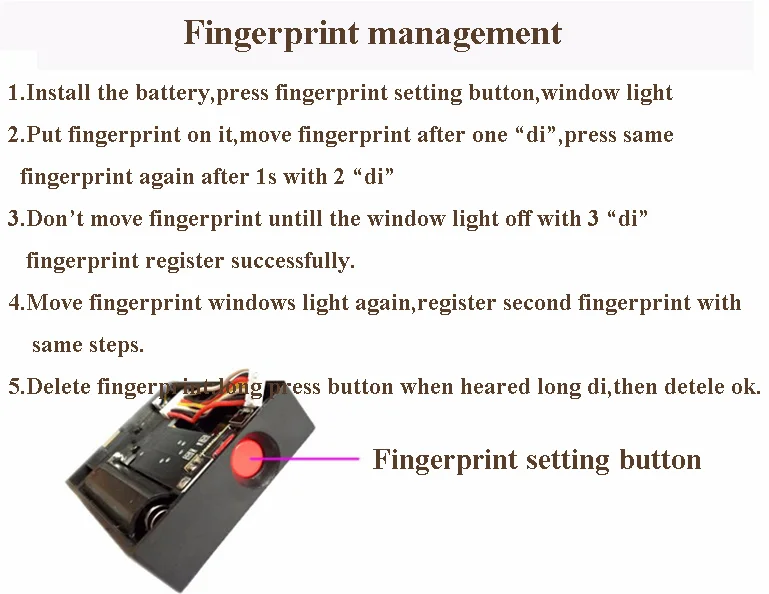

Fingerpint Management
1.Install batterympress fingerprint setting button,window light
2.Put fingerprint on Window,move after one "di",press same fingerprint again after 1s with 2 "di"
3.Don't move fingerprint untill the wondow light off with 3 "di" fingerprint register successfully.

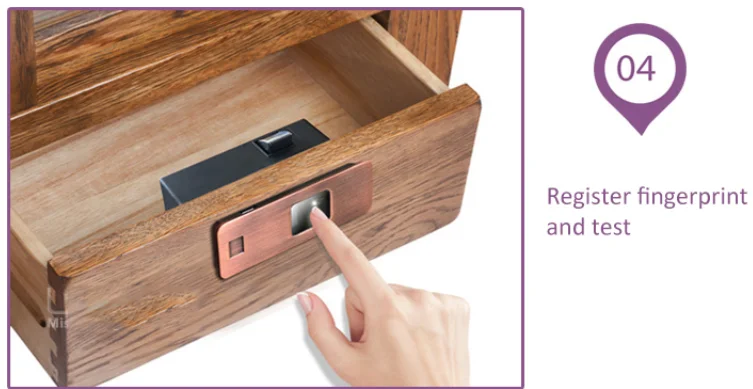

4.Move fingerprint windows light again,register second fingerprint with same steps.
5.Delete fingerprint:long press button when heard long "di",deleted finished.

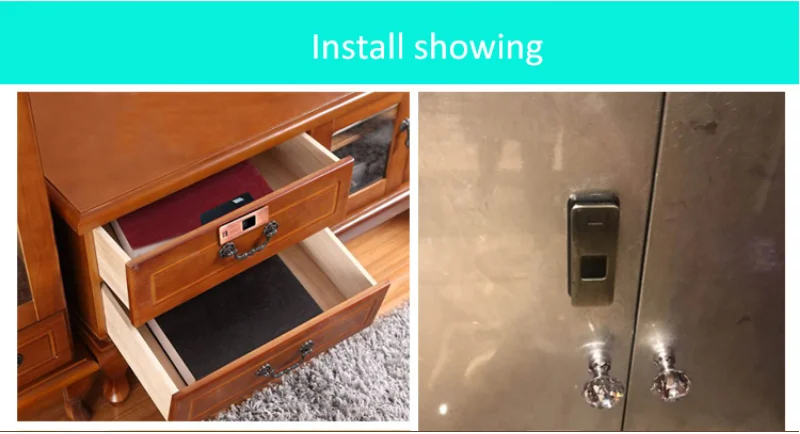

How to install it?

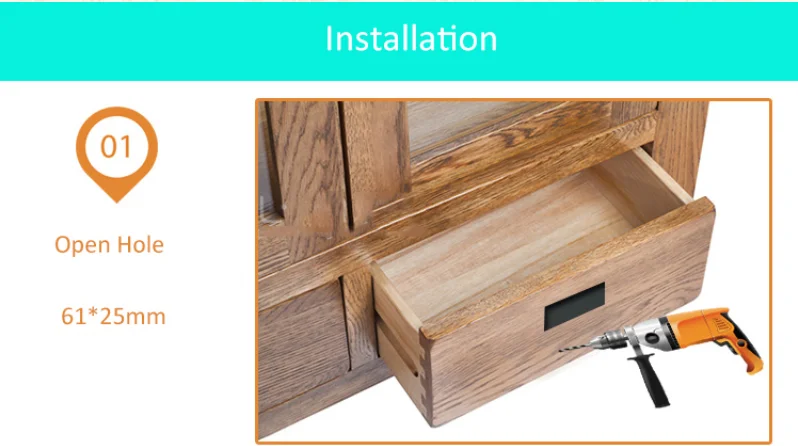

1.Open an rectangle hole for 6.5*2cm on cabinet/drawer or door.

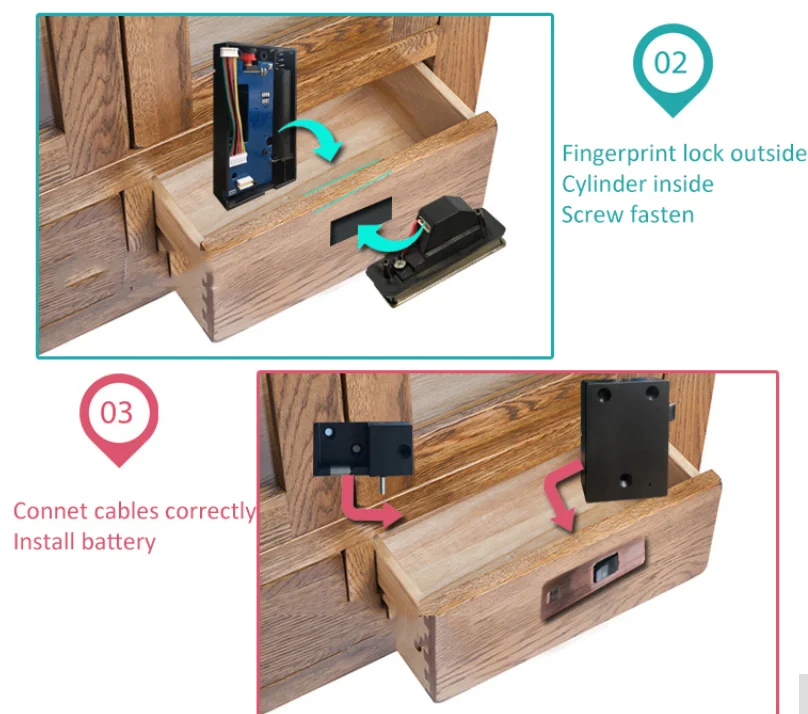

2.Install fingerprint lock,connect with battery box use screw to fix
3.Fix lock cylinder

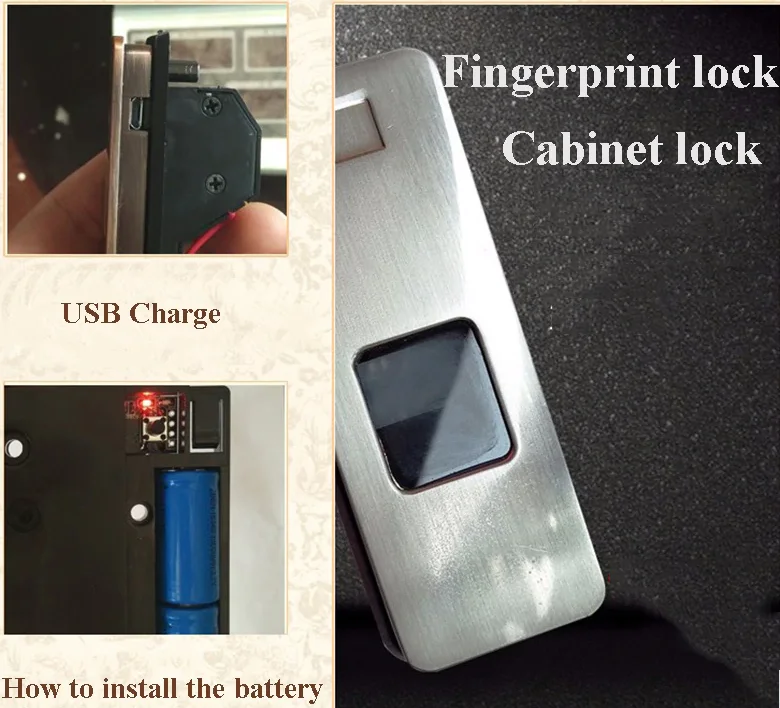

4.Connect all cables,put on batteries(not included)

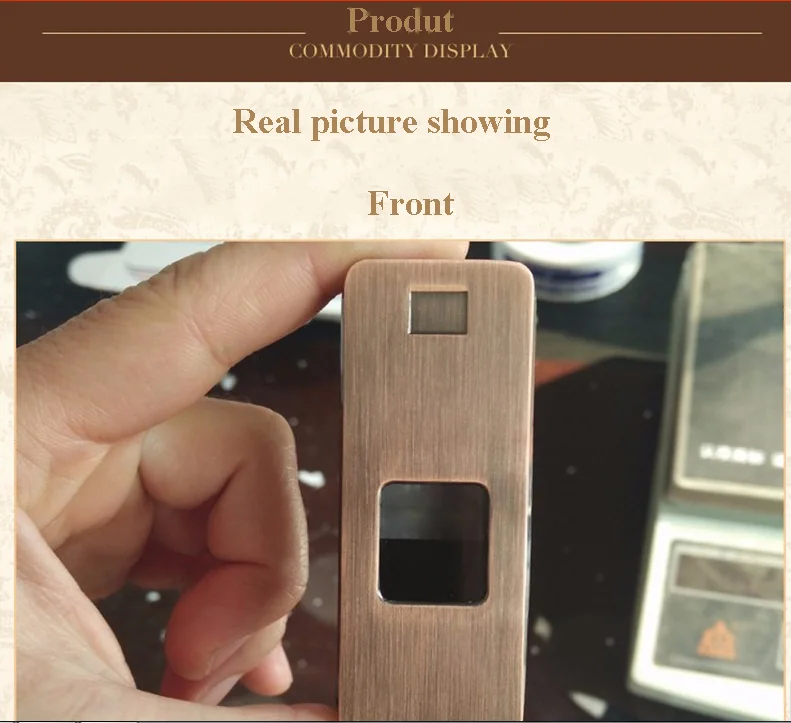

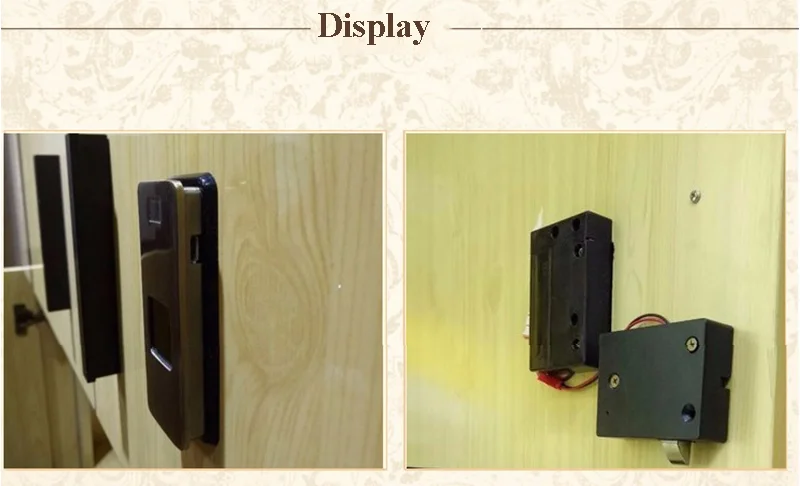

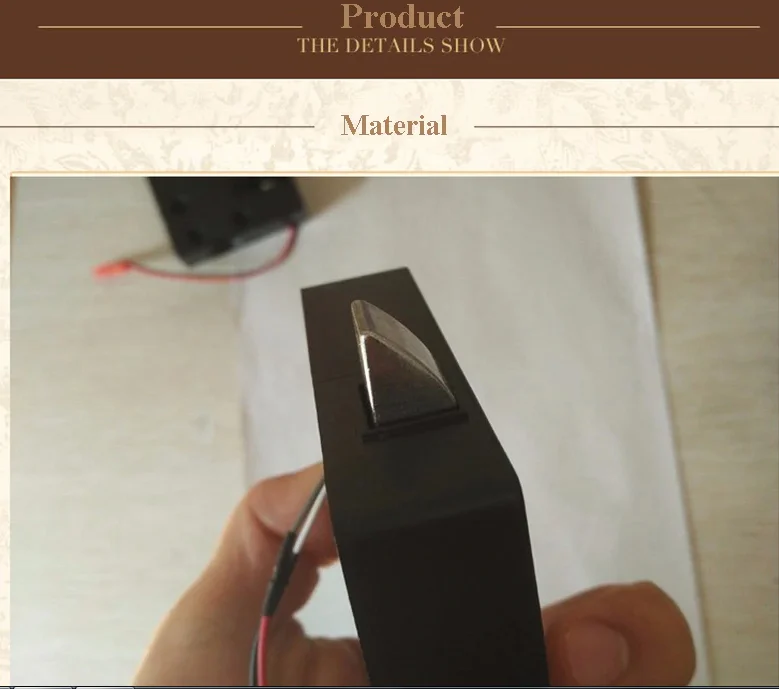

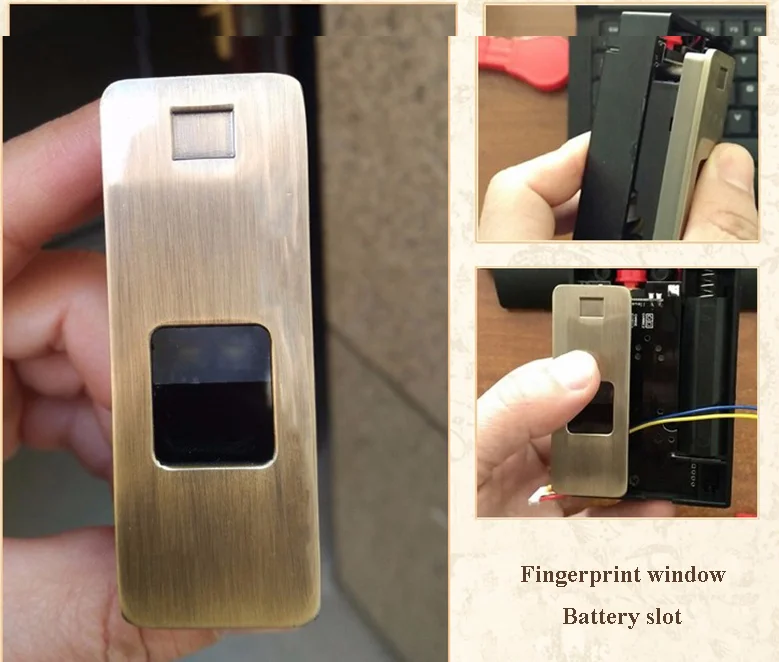

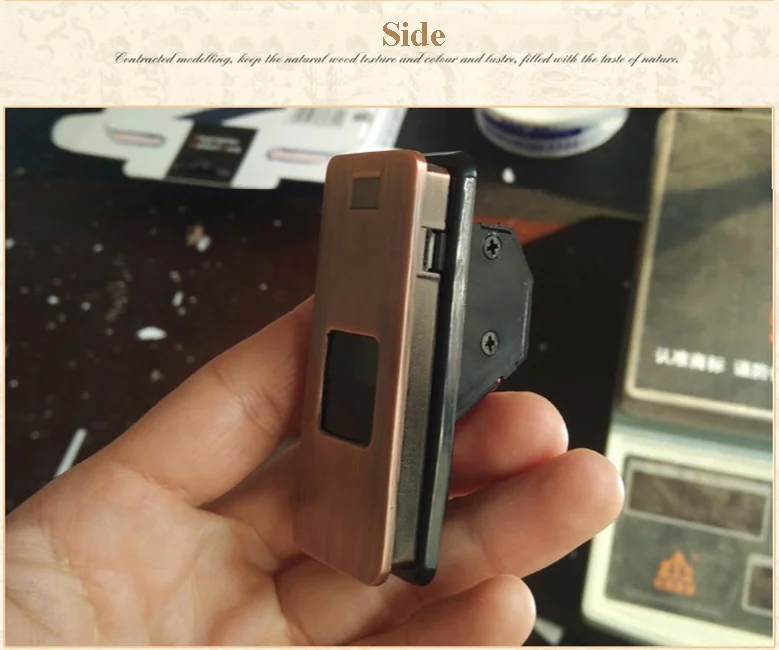

Detailed Images

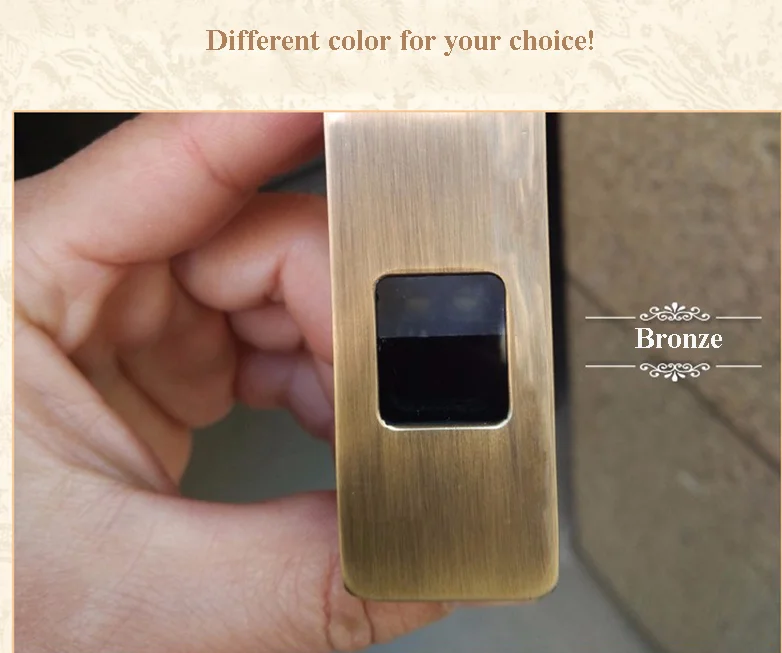

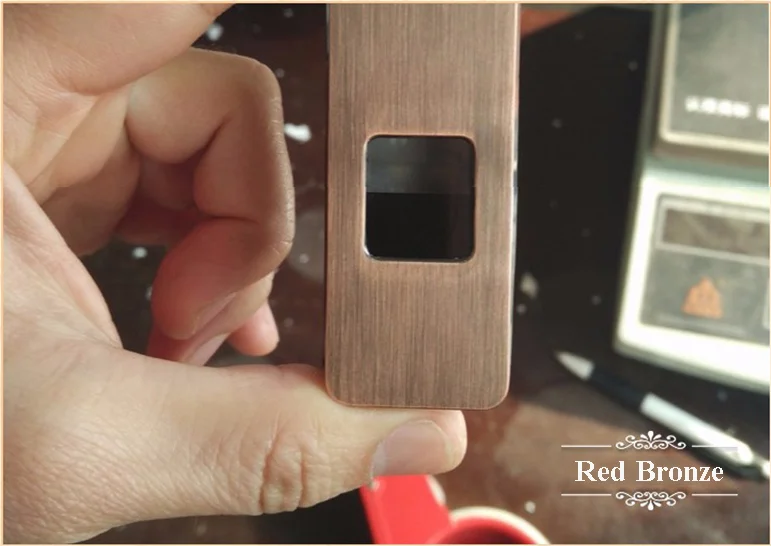

Multi colors
